Features

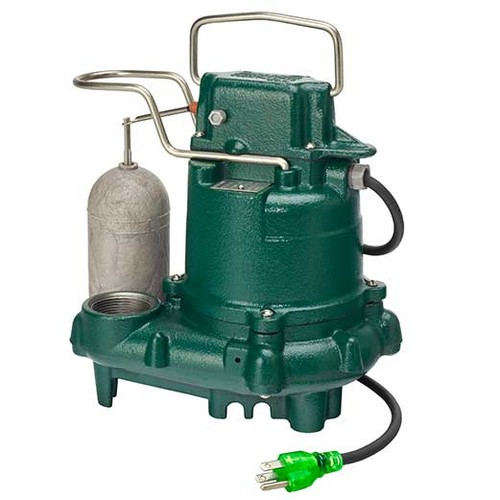

- Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
- Pumps 2040 Gallons per hour (10′ head)
- Corrosion-resistant, powder-coated epoxy finish
- All cast iron construction
- Viton outer switch boot
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog
- Watertight, neoprene square ring between motor and pump housing
- Solid, buoyant, polypropylene float
- Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure-tested after assembly
- Carbon and ceramic shaft seal
- Maximum temperature for effluent or dewatering: 130 F (54 C)
- Watertight and dust-tight
- Permanently oiled bearings
- Cast iron impeller
Specifications
- 5 Year Manufacturer’s Warranty
- Click Here for Spec Sheet
- Made in the USA
- Passes 1/2″ (13 mm) spherical solids
- 1-1/2″ NPT discharge
- On point: 7-1/4″ (18 cm)
- Off point: 3″ (8 cm)
- Major width: 10-3/32″ (26.2 cm)
- Major height: 10-1/16″ (25.6 cm)
